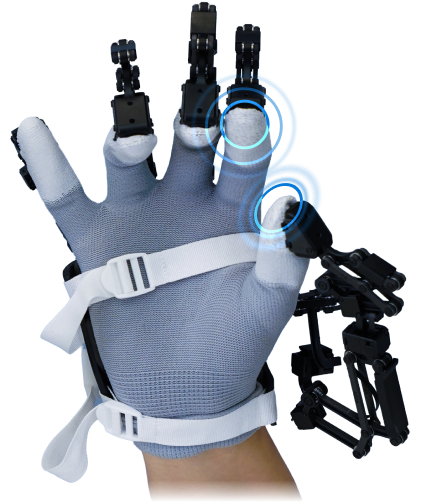

Intuitive Haptic Feedback
Continuous haptics enables more intuitive, responsive, and precise control.
An Exoskeleton Data Glove with Haptic Feedback for Precise Teleoperation and Egocentric Data Capture.
Seamless Teleoperation

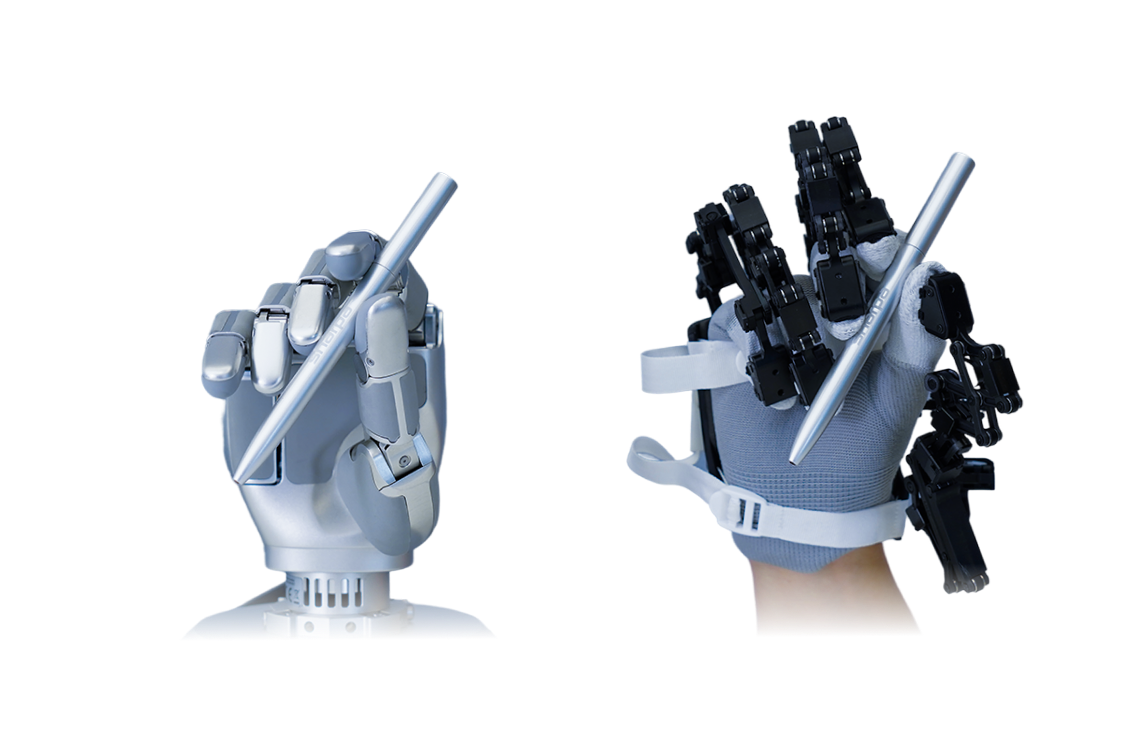

Native 22-DoF Twin Design
Twenty-two encoders capture natural joint motion for high-fidelity robot teleoperation.
Calibration-Free & Interference-Resistant
Plug-and-play teleoperation requires no additional calibration and resists environmental interference.
Product Details
Specification Sheet
| Hardware | Degrees of Freedom | 22 DoF |
|---|---|---|
| Haptic Feedback | 5 LRA vibration motors, one per fingertip 256 dynamic levels per fingertip |
|
| Dimensions | 183.5 × 176.82 × 89.27 mm | |
| Size Options | S, M, L, XL | |
| Fingertip Position Repeatability | < 1 mm | |
| Nominal Lifetime | > 1,000,000 cycles | |
| Operating Temperature | 0 °C to 45 °C |
| Power & Communication | Battery Life | > 3 h |
|---|---|---|
| Charging Time | 1 h | |
| Charging Interface | USB Type-C | |
| Communication | Wired: USB 2.0 Type-C Wireless: USB Dongle, USB 2.0 Type-A |
|
| Data Output Frequency | Wired: 500 Hz Wireless: 150 Hz |
|
| Latency | Wired: 5 ms Wireless: 10 ms |
|
| Wireless Range | Up to 30 m |
